• 3.73 Rear Axle Ratio
• 357 Kgs) GVWR
• 400 lbs (3
• 7
• Cargo Shade
• Floor Console with Storage Area
• Front Round Fog Lamps
• Rear Audio System Controls
• Steering Wheel Mounted Audio Controls
• XM Satellite Radio

• Air conditioning, dual-zone automatic climate control with individual climate settings for driver and right-front passenger
• Air conditioning, rear auxiliary
• Assist handles, front passenger and second row outboard
• Audio system controls, rear with 2 headphone jacks (headphones not included), power outlet and controls for volume, station selection and media
• Audio system feature, Bose premium 9-speaker system with subwoofer in center console
• Audio system, AM/FM stereo with MP3 compatible 6-disc in-dash CD changer, seek-and-scan, digital clock and auto-tone control
• Cargo mat
• Cargo shade
• Console, floor with storage area, cup holders and integrated second row audio controls (Includes woodgrain covered forward storage)
• Console, overhead mini with map lights (Includes controls for sunroof, power liftgate and power release second row seats when (CF5) power sunroof, (E61) power liftgate with liftglass and (ARS) second row power seat release is ordered.)
• Cruise control, electronic with set and resume speed
• Defogger, rear-window electric
• Door locks, power programmable with lockout protection
• Floor covering, color-keyed carpeting
• Floor mats, color-keyed carpeted front and second row, removable
• Headliner, cloth
• Heater, rear auxiliary with rear passenger heating ducts
• LTZ Plus Sales Package
• Lighting, interior with dome light, driver-and passenger-side door switch with delayed entry feature, cargo lights, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions
• Mirror, inside rearview auto-dimming with 8-point compass and outside temperature display
• OnStar, 1-year of Safe and Sound plan. Includes Automatic Notification of Air Bag Deployment, Stolen Vehicle Location Assistance, Emergency Services, Roadside Assistance, Remote Door Unlock, OnStar Vehicle Diagnostics, Hands-Free Calling, AccidentAssist, and Remote Horn & Lights (Not available with order type FDR. OnStar services require vehicle electrical system (including battery), wireless service and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. OnStar Vehicle Diagnostics available on most 2004 MY and newer GM vehicles. Diagnostic capability varies by model. Visit onstar.com for system limitations and details.)
• Pedals, power-adjustable for accelerator and brake
• Power outlets, 5 auxiliary, 12-volt, includes 2 on the instrument panel, 1 in the cargo area, 1 inside center console and 1 at back of console
• Rear Parking Assist, Ultrasonic with rearview LED display and audible warning
• Remote vehicle starter system, includes Remote Keyless Entry
• Seat adjuster, driver power
• Seat adjuster, front passenger power
• Seat release, second row, power release only (Available with (AM8) second row 60/40 split-folding bench seat with leather-appointed seating surfaces or (AL4) second row bucket seats with leather-appointed seating surfaces.)
• Seats, front bucket with leather-appointed seating, 12-way power driver and front passenger seat adjusters, power lumbar control, heated seat cushion and seatbacks, 2-position driver memory, adjustable head restraints, storage pockets and floor console
• Seats, heated second row
• Seats, second row bucket with leather-appointed seating, reclining
• Seats, third row 50/50 split-bench with vinyl, 2-passenger, removable, all-belts-to-seat, includes 2 cup holders and storage bin
• Steering wheel controls, mounted audio, Driver Information Center and cruise controls, includes Driver Information Center controls on instrument panel to right of steering wheel
• Steering wheel, leather-wrapped
• Theft-deterrent system, vehicle, PASS-Key III
• Tire Pressure Monitoring System (does not apply to spare tire)
• Universal Home Remote, includes garage door opener, programmable
• Visors, driver and front passenger illuminated vanity mirrors, padded with cloth trim, extends on rod
• Warning tones, headlamp on, key-in-ignition, driver and right-front passenger safety belt unfasten and turn signal on
• Windows, power with driver Express-Down and lockout features

• 4-wheel drive
• Alternator, 160 amps
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Body, liftgate with liftglass, power rear door system with rear-window wiper/washer
• Body, liftgate with liftglass, rear door system with rear-window wiper/washer
• Brakes, 4-wheel antilock, 4-wheel disc
• Differential, heavy-duty locking rear
• GVWR, 7400 lbs. (3357 kg) (Requires 4x4 1/2 ton models.)
• Key, single, 2-sided
• Rear axle, 3.73 ratio
• Recovery hooks, front, frame-mounted (Not available on 2WD 1/2 ton models.)
• StabiliTrak, stability control system with Proactive Roll Avoidance
• Steering, power
• Suspension Package, Autoride, bi-state variable shock dampening and rear air-assisted load-leveling, includes (G69) automatic air level control
• Suspension, front coil-over-shock with stabilizer bar
• Suspension, rear multi-link with coil springs
• Tire carrier, lockable outside spare, winch-type mounted under frame at rear
• Tire, spare P265/70R17 (1/2 ton models only.)
• Tires, P275/55R20 all-season, blackwall (Required with (RCS) 20" polished aluminum wheels.)
• Trailering equipment, heavy-duty, includes trailering hitch platform, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector, (VR4) 2" trailering receiver
• Transfer case, electronic Autotrac with rotary controls (Requires 4x4 models.)
• Wheel, 17" (43.2 cm) full-size, steel spare (1/2 ton models only)
• Wheels, 4 - 20" x 8.5" (50.8 cm x 21.6 cm) polished aluminum (Requires (QSS) P275/55R20 all-season, blackwall tires.)

• Air bags, dual-stage frontal, driver and right-front passenger with Passenger Sensing System (right-front passenger air bag status on inside rearview mirror) (Always use safety belts and the correct child restraints for your childs age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Air bags, head curtain side-impact, first and second row outboard seating positions with rollover sensor, includes third row seating positions with (AS3) 3-passenger third row 50/50 split-bench seat or (AW2) 2-passenger third row 50/50 split-bench seat (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your childs age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Brakes, 4-wheel antilock, 4-wheel disc
• Daytime Running Lamps, with automatic exterior lamp control
• LATCH system (Lower Anchors and Top tethers for CHildren), for child safety seats
• Safety belts, 3-point, driver and front passenger in all seating positions
• StabiliTrak, stability control system with Proactive Roll Avoidance

ENGINE, VORTEC 5.3L V8 SFI FLEX-FUEL

• with Active Fuel Management
• capable of running on unleaded or up to 85% ethanol (310 hp [231.1 kW] @ 5200 rpm
• 335 lb-ft of torque [452.3 N-m] @ 4400 rpm)
• aluminum block (STD)

• 3rd Row Seat
• Heated Front Seat(s)
• Premium Sound System
• Rear Seat Audio Controls
• Steering Wheel Audio Controls
• Multi-Zone A/C
• Rear A/C
• Rear Parking Aid
• Stability Control
• Leather Seats
• Power Driver Seat
• Seat Memory
• Power Liftgate

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 20
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 160
• Cooling System
• Total Cooling System Capacity (qts): 18.3
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 4200
• Curb Weight - Front (lbs): 2889
• Curb Weight - Rear (lbs): 2676
• Gross Vehicle Weight Rating Cap (lbs): 7400
• Gross Combined Wt Rating (lbs): 13,000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1050
• Suspension
• Suspension Type - Front: Coil springs
• Suspension Type - Rear: Coil springs
• Spring Capacity - Front (lbs): 3600
• Spring Capacity - Rear (lbs): 4200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 3925
• Axle Capacity - Rear (lbs): 4200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 1.81
• Shock Absorber Diameter - Rear (mm): 1.81
• Stabilizer Bar Diameter - Front (in): 1.41
• Stabilizer Bar Diameter - Rear (in): 1.10
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.5 x 0.79
• Tires
• Front Tire Order Code: QSS
• Rear Tire Order Code: QSS
• Spare Tire Order Code: ZVL
• Front Tire Size: P275/55R20
• Rear Tire Size: P275/55R20
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): 2135
• Rear Tire Capacity (lbs): 2135
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 20 x 8.5
• Rear Wheel Size (in): 20 x 8.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.75
• Steering Ratio (:1), At Lock: 17.75
• Turning Diameter - Curb to Curb (ft): 43.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 130.0
• Length, Overall w/rear bumper (in): 222.4
• Width, Max w/o mirrors (in): 79.1
• Height, Overall (in): 76.8
• Overhang, Front (in): - TBD -
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 32.6
• Ground Clearance, Front (in): 10.5
• Ground Clearance, Rear (in): 9.1
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): 101.8
• Cargo Area Length @ Floor to Seat 2 (in): 69.6
• Cargo Area Length @ Floor to Seat 3 (in): 35.6
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 49.1
• Cargo Box (Area) Height (in): 41.4
• Cargo Volume to Seat 1 (ft³): 137.4
• Cargo Volume to Seat 2 (ft³): 90.0
• Cargo Volume to Seat 3 (ft³): 45.8
• Interior Dimensions
• Passenger Capacity: 7
• Front Head Room (in): 41.1
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.3
• Front Hip Room (in): 64.4
• Second Head Room (in): 38.5
• Second Leg Room (in): 39.5
• Second Shoulder Room (in): 65.2
• Second Hip Room (in): 61.8
• Third Head Room (in): 38.1
• Third Leg Room (in): 34.9
• Third Shoulder Room (in): 64.7
• Third Hip Room (in): 49.4
• Summary

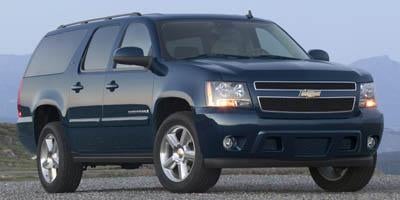

• Vehicle Name: Chevrolet Suburban
• Body Style: 4 Door 1500
• Body Code: E61
